Description

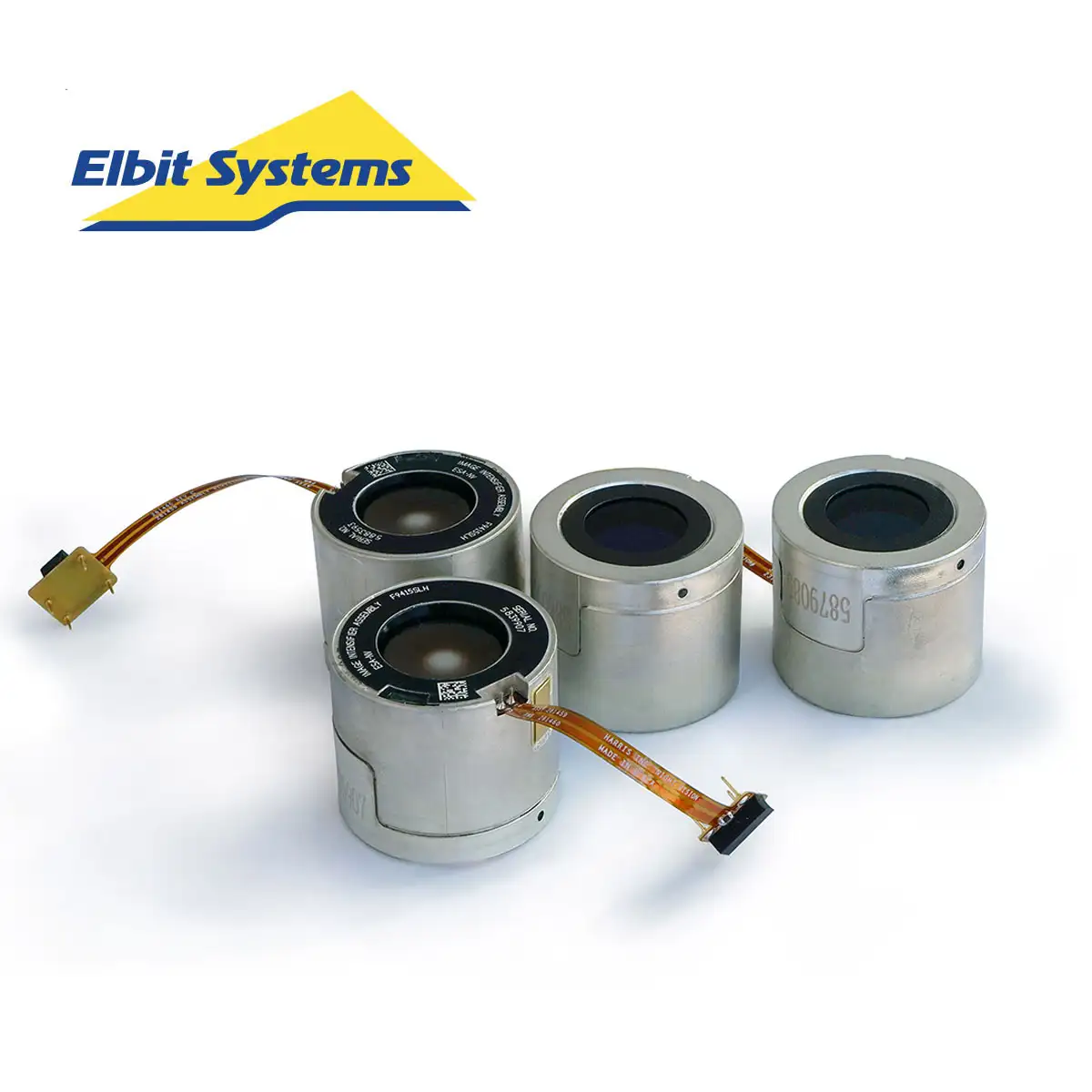

Elbit Image Intensifier Tube F9415 (IIT)
The Elbit F9415 IIT is a GEN III 18mm White Phosphor image intensifier tube FOM 2300+. Each Tube comes with a tube data sheet listing the following specifications: Signal to Noise Ratio (S/N), Resolution, EBI (electronic background input), HALO, Photocathode Response (PR).
The F9415 series image intensifier consists of a high efficiency GaAs photocathode bonded to a glass input window, a microchannel plate (MCP) current amplifier, and a white phosphor screen deposited on an inverting fiber optic output window. The Gen 3 photocathode is very sensitive to low radiation levels of visible and, especially, near infrared light. Tube lifespan is an average of 12,000 hours continuous use.
The Elbit F9415 also incorporates a variable gain power supply which gives the user the ability to adjust the tube gain or brightness in the field. This can be extremely helpful under high or low light conditions.
Included
- Elbit GEN III, F9415 White Phosphor image intensifier tube (IIT) FOM 2300+ AND IIT Spec Sheet
