Call for Price

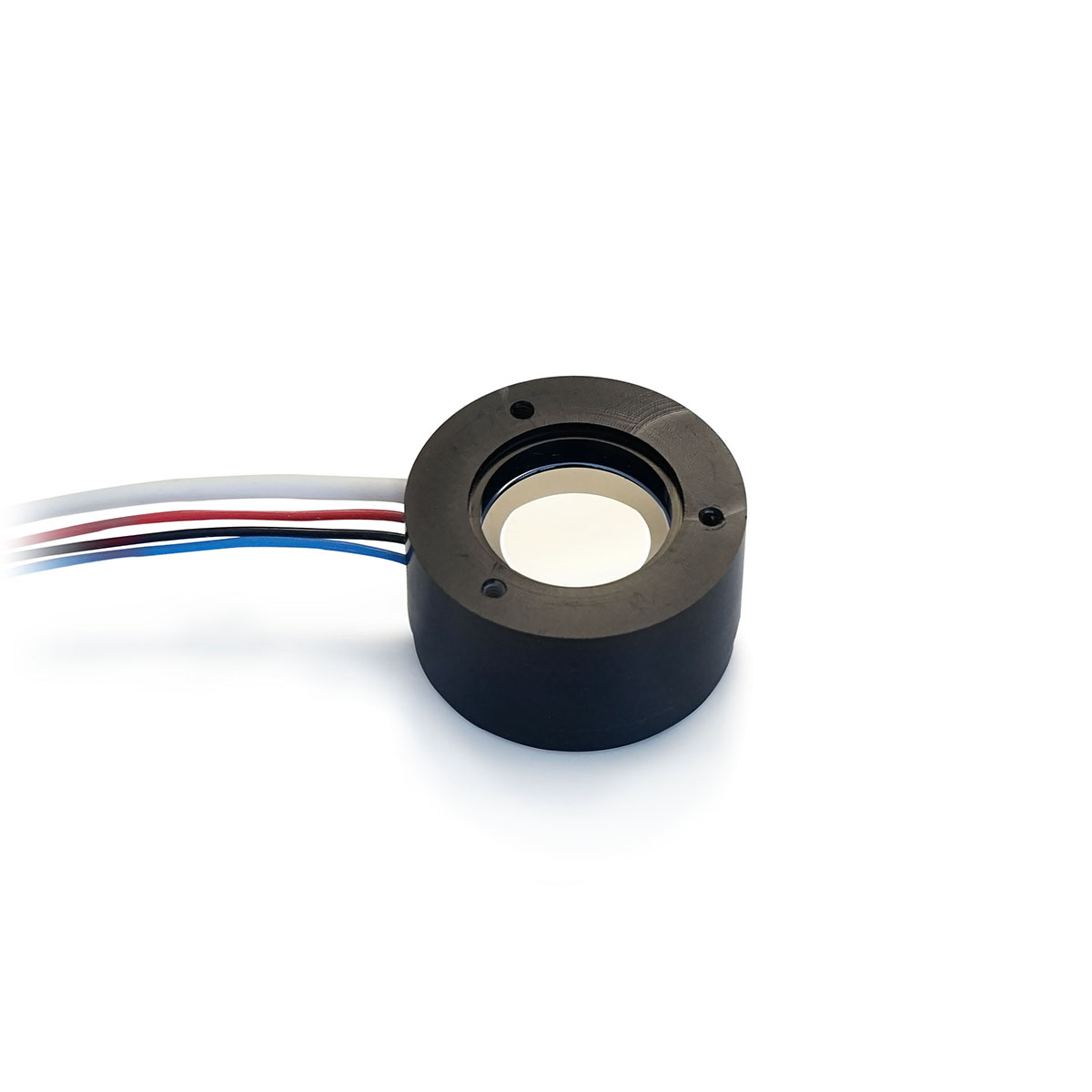

Gateable 18mm Proximity Focused Image Intensifier 21818RG with S-20 photocathode, glass input and straight flat Fiber Optics output to cover Visible and Near IR spectral ranges. Available with flying leads. Optional modules include: external HV power supply and nanosecond gating unit.
Gen2 Gateable 18mm Image Intensifier 21818RG (call for Price)
The ANVS GEN 2 Gateable 18mm Proximity Focused Image Intensifier has a S-20 photocathode, glass input and straight flat Fiber Optics output to cover Visible and Near IR spectral ranges. Available with flying leads. Optional modules include: external HV power supply and nanosecond gating unit.
This image intensifier can be used for High Grade Night Vision, R&D, Law Enforcement or Military applications.
Tube Specifications
Gen 2 Image Intensifier 21818RG | |
Applications | Night Vision, R&D |
Photocathode Size | 18mm Dia |
Photocathode | S-20 extended |
Phosphor | P-20 RED |
Magnification | 1 x |
Spatial resolution | (min) > 30 lp/mm |
Output window | 18mm Dia |
Dimensions | 43 x 22.5mm |
Weight | 55 g |
